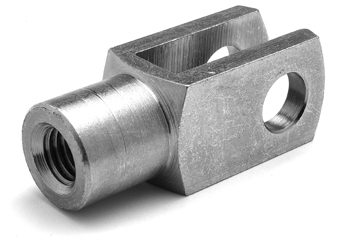

Machined forks

Gardette - machined-forks

Feature selection


Discover our special range of exotic raw material on Exofix.uk.com
(titane, duplex, monel, inconel, ...)
Norms - machined forks
Matierial - machined forks
Length - machined forks
Width - machined forks
Tapping - machined forks
Quantity :

Main Features Standard

Designation : Machined fork head
Usual standards : DIN 71752
Standard material : Galvanized steel
Comments : There are 2 types of forks: long arms and short arms.
Special dimensions and tolerances on request



Material = S300Pb





A

h9

B

diam + pas

K

E G H L
CBC 4 M4 X 0,70 8 16 8 4 21
CBL 4 M4 X 0,70 16 24 8 4 29
CBC 5 M5 X 0,80 10 20 10 5 26
CBL 5 M5 X 0,80 20 30 10 5 36
CBC 6 M6 X 1,00 12 24 12 6 31
CBL 6 M6 X 1,00 24 36 12 6 43
CBC 8 M8 X 1,25 16 32 16 8 42
CBL 8 M8 X 1,25 32 48 16 8 58
CBC 10 M10 X 1,50 20 40 20 10 52
CBL 10 M10 X 1,50 40 60 20 10 72
CBC 12 M12 X 1,75 24 48 24 12 62
CBL 12 M12 X 1,75 48 72 24 12 86
CBC 14 M14 X 2,00 28 56 27 14 72
CBL 14 M14 X 2,00 56 85 27 14 101
CBC 16 M16 X 2,00 32 64 32 16 83
CBL 16 M16 X 2,00 64 96 32 16 115
CBC 18 M18 X 2,50 36 72 36 18 94
CBC 20 M20 X 2,50 40 80 40 20 105
CBL 20 M20 X 2,50 80 120 40 20 145
CBC 25 M24 X 3,00 50 100 50 25 132
Non-contractual photos
