Main Features Standard

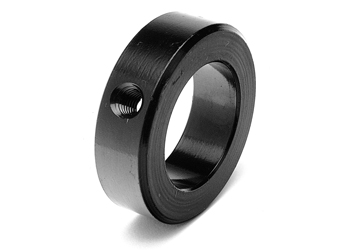

Designation : Set collars DIN 705A
Usual standards : DIN 705A
Equivalent standards : NFE 22161
Standard material : Steel
Comments : Other dimensions and materials on request.
Set collars are delivered witout screws
|
Matière = Acier 9SMnPb28K
Material = Acier 9SMnPb28K
|
|

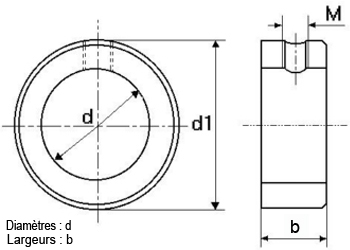

d
h8
|
d1
n13
|
b
js14
|
M
|
|
6
|
12 |
8 |
M4 |
| 8 |
16 |
8 |
M4 |
| 10 |
20 |
10 |
M5 |
| 12 |
22 |
12 |
M6 |
| 15 |
25 |
12 |
M6 |
| 16 |
28 |
12 |
M6 |
| 18 |
32 |
14 |
M6 |
| 20 |
32 |
14 |
M6 |
| 22 |
36 |
14 |
M6 |
| 25 |
40 |
16 |
M8 |
| 30 |
45 |
16 |
M8 |
| 35 |
56 |
16 |
M8 |
| 40 |
63 |
18 |
M10 |
| 45 |
70 |
18 |
M10 |
| 50 |
80 |
18 |
M10 |
| 55 |
80 |
18 |
M10 |
| 60 |
90 |
20 |
M10 |
| 65 |
100 |
20 |
M12 |
| 70 |
100 |
20 |
M12 |
| 75 |
110 |
22 |
M12 |
| 80 |
110 |
22 |
M12 |
| 85 |
125 |
22 |
M12 |
