STUB bars

Gardette - stub-bars

Feature selection


Discover our special range of exotic raw material on Exofix.uk.com
(titane, duplex, monel, inconel, ...)
Norms - stub bars
Material - stub bars
Diameter - stub bars
Length - stub bars
Tolerances - stub bars
Quantity :

Main Features Standard

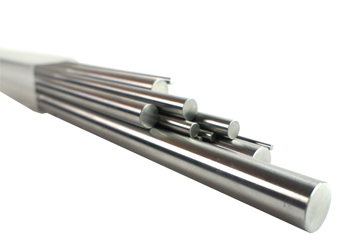

Designation : 2m long STUB bars tolerance h7
Usual standards : Long steel stub bars
Standard material : Steel 100Cr6 Rm>800N/mm²
Comments : To obtain 58-62HRC hardness (like for hardened pins), they must be hardened and tempered after machining.
Other dimensions tolerances and materials on request.

See long steel STUB bars kit

Matière = 100Cr6 Rm>800N/mm2

Material = 100Cr6 (breaking strength 800 N/mm)

Diamètres disponibles en cotes métriques

Tolérance = h7

Diameter available in stock in metric dimensions

Diamètres disponibles en cotes pouces

Tolérance = h7

Diameter available in stock in imperial dimensions

2 11 20 6.33
2.5 11.5 22 7.93
3 12 24 9.52
3.5 12.5 26 12.70
4 13 28 15.87
4.5 13.5

30

19.05
5 14 32 22.22
5.5 14.5 35 25.40
6 15 40
6.5 15.5
7 16
7.5 16.5
8 17
8.5 17.5
9 18
9.5 18.5
10 19
10.5 19.5
Non-contractual photos
